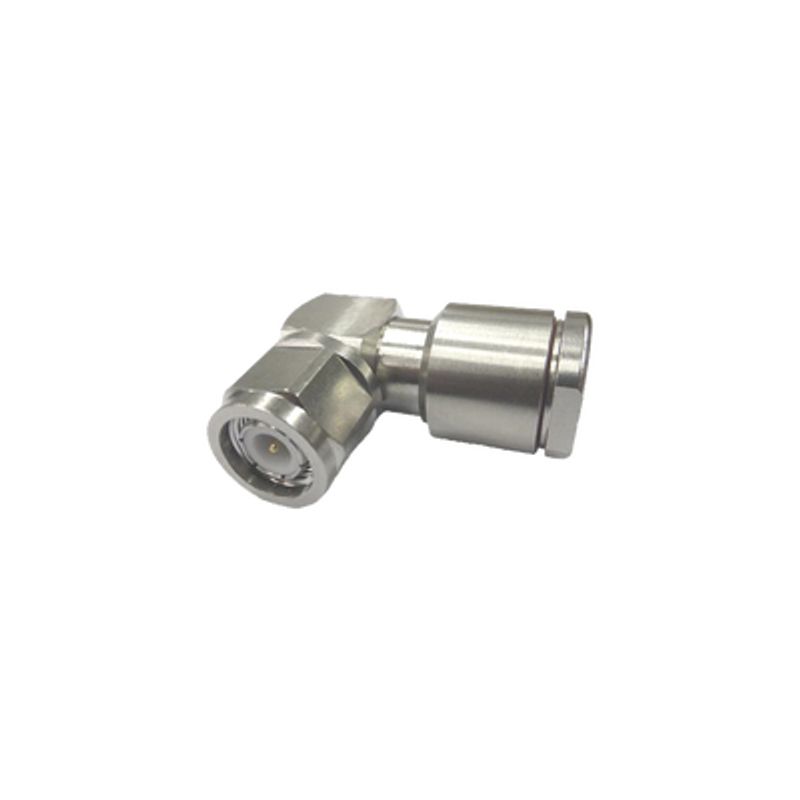

Conector Tnc Macho En Ángulo Para Cable Cnt400 Rg8
$407.04 MXN
IVA Incluido
Metodos de pago seguros y confiables.
Beneficios
Envios Gratis a partir de $10,000
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recomienda y gana
General Specifications
Interface TNC Male
Body Style Right angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 500.00 V
dc Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
Interface TNC Male
Body Style Right angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 500.00 V
dc Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
400BPTR-C
Ficha técnica
- Modelo
- 400BPTR-C
- Peso
- 400BPTR-C
- Stock
- 0
- Referencia
- 76812
- Actualizado
- 2023-08-16 14:50:59
Referencias Específicas
- mpn
- 400BPTR-C
Nuevo
