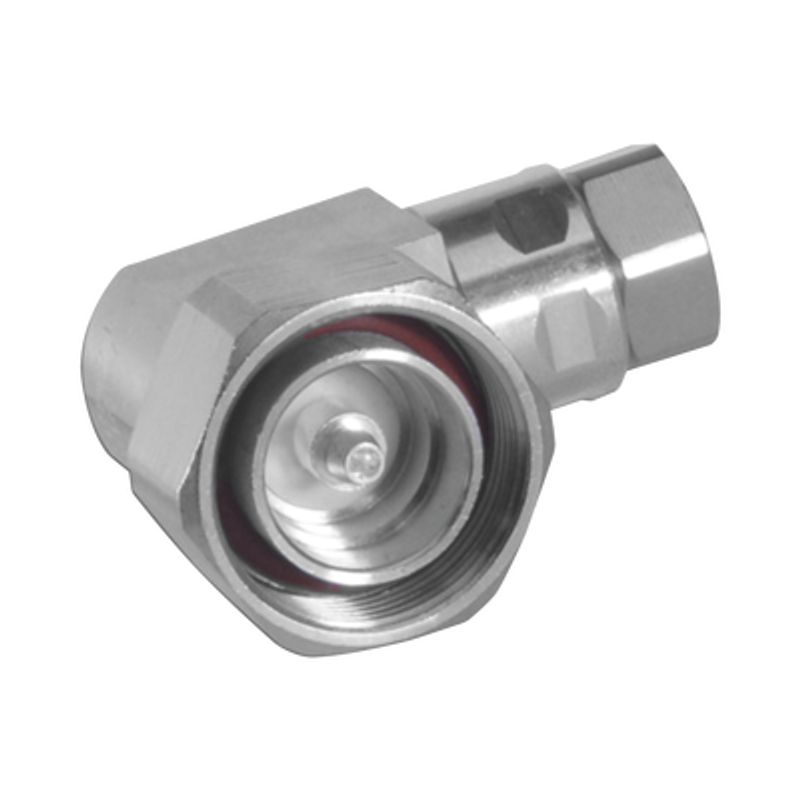

Esta imagen es unicamente representativa, puede cambiar al producto real
Conector Din 716 Macho De Angulo Recto Para Cable Fsj450b
$942.72 MXN
IVA Incluido
Metodos de pago seguros y confiables.
Beneficios
Envios Gratis a partir de $10,000
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recomienda y gana
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.0 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical  | 0.05 dB |
| Shielding Effectiveness | -110 dB |
F4DR-C
Ficha técnica
- Modelo
- F4DR-C
- Peso
- F4DR-C
- Stock
- 0
- Referencia
- 168193
- Actualizado
- 2023-08-16 15:14:00
Referencias Específicas
- mpn
- F4DR-C
Nuevo
