Esta imagen es unicamente representativa, puede cambiar al producto real

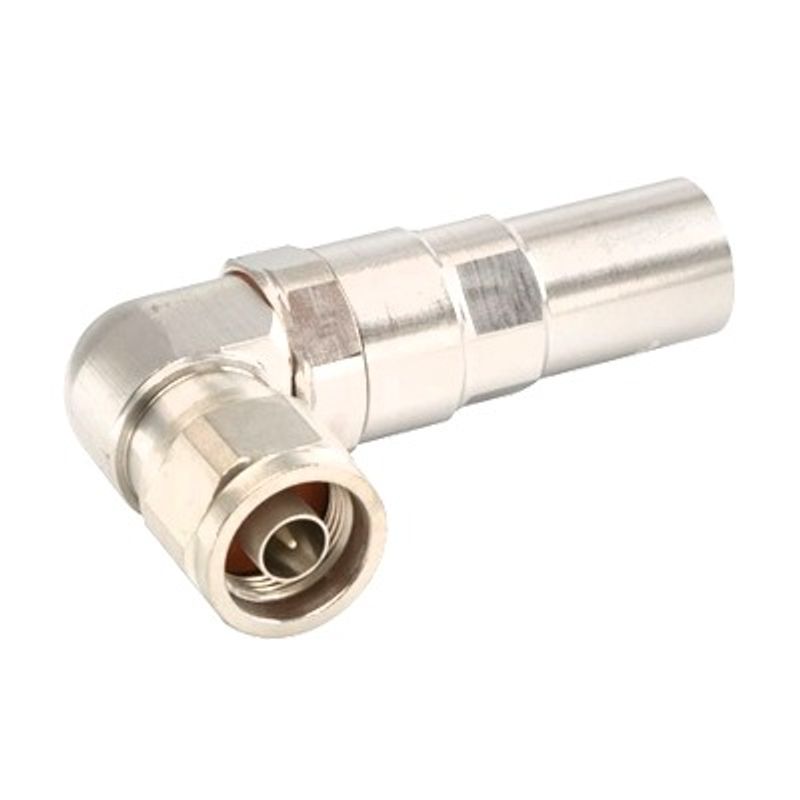

Conector N Macho En Ángulo Recto Para Ldf450a
$1,055.68 MXN
IVA Incluido
Agotado
Metodos de pago seguros y confiables.
Beneficios
Envios Gratis a partir de $10,000
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recibelo de 24 a 72 horas
(No aplica en envíos volumétricos)
Recomienda y gana
General Specifications
Interface N Male
Body Style Right angle
Brand HELIAX® | Positive Stop™
Mounting Angle Right angle
Ordering Note CommScope® standard product (Global)
Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 8800 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical 116 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 707.00 V
dc Test Voltage 2000 V
Outer Contact Resistance, maximum 0.30 mOhm
Inner Contact Resistance, maximum 2.00 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 0.6 kW @ 900 MHz
Peak Power, maximum 10.00 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness 110 dB
L4NR-PS
Ficha técnica
- Modelo
- L4NR-PS
- Peso
- L4NR-PS
- Stock
- 0
- Referencia
- 71672
- Actualizado
- 2023-08-16 14:51:28
Referencias Específicas
- mpn
- L4NR-PS
Nuevo
