Descripcion
General

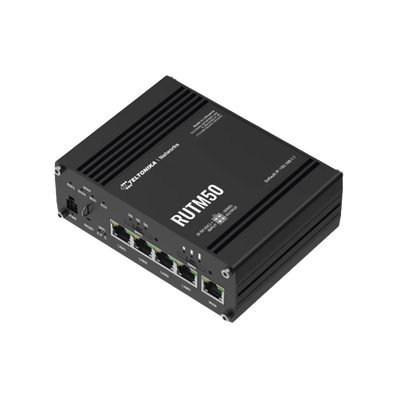

- Teltonika Remote Management System RMS
- Casing material: Aluminium housing with DIN rail mounting options
- Wide operating range in extreme environments
- Compact size
- PoE (passive): Passive PoE over spare pairs
Connectivity
- 5G - Ultra-high cellular speeds of up to 3.4 Gbps
- 1 WAN Port, 10/100/1000 Mbps (configurable as LAN)
- 4 LAN ETH Ports, 10/100/1000 Mbps
- WiFi Wave2 802.11 b/g/n/ac, Dual Band MU-MIMO
- 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
- 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
- VPN Connection (RMS)
Electrical and Physical
- Power Supply: 9 - 50 Vdc, Passive PoE LAN port
- Power Consumption: 18 W
- Weight: 1.14 lb (519 g)
- Dimensions(WxHxD): 5.2 x 1.74 x 3.74 in / 132 x 44.2 x 95.1 mm
- Operating Temperature: -40 to 167 °F (-40 to 75°C)
- Ingress Protection: IP30
Hardware
- CPU: MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc
- RAM: 256 MB, DDR3
Ficha tecnica
Nivel de rendimientoCategoria 6 / Clase E
Tipo de cableU/UTP de 0.90 m (3 ft)
CableadoT568B, conectores RJ45
Calibre24 AWG, clasificacion CM
CertificacionesRoHS, UL 1863
NormaTIA/EIA-568-C.2
Documentos del producto
No hay documentos disponibles para este producto.
Preguntas
Responde el equipo NovusredEs compatible con camaras PoE?
Si, soporta PoE y PoE+ sin problema al ser Cat. 6 de cobre solido.
