Descripcion
Características Principales

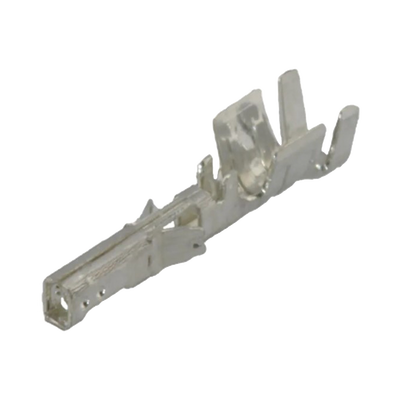

- Terminales hembra para conectores Molex 3 mm
- Compatibilidad con cables AWG 20-24
- Ideal para conexiones seguras y duraderas
- Paquete diseñado para instalaciones eléctricas eficientes
- Material resistente para uso prolongado
Especificaciones Técnicas
- Part Number: 043030008
- Status: Active
- Gender: Female
- Wire Size: 20, 22, 24 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Plating Thickness - Mating: 0.381µm
- Plating Thickness - Termination: 2.540µm
- Current Maximum per Contact: 8.5A
- Net Weight: 0.094/g
- Packaging Type: Bag
Compatibilidad y Aplicaciones
- Product Family: Crimp Terminals
- Series: 43030
- Overview: Micro-Fit Connector System
- Application: Power, Wire-to-Board, Wire-to-Wire
- Use With: Micro-Fit 3.0 Receptacle Housings 43025, 43645
- Also Use With: Micro-Fit BMI Panel Mount Receptacle Housings 44133, 46623
- Also Use With: Micro-Fit TPA Receptacle Housing 171850, 172952
Conformidad y Certificaciones
- EU RoHS: Compliant
- China RoHS: Green Image
- REACH SVHC: Not Contained Per -
- RoHS Phthalates: Not Contained
- EU ELV: Not Relevant
- Halogen-Free: Yes
- Low-Halogen: Yes
Herramientas y Documentación
- Extraction Tool: 11030043
- Insertion Tool: 638120800
- Premium Grade Hand Crimp Tool: 638190000
- Packaging Specification: PK-43045-003-001
- Product Specification: 430450001-PS-KO-000, 430450001-PS-SP-000, PS-43045-001
- Test Summary: 430450005-TS-000, 430450006-TS-000, TS-43045-001-001, TS-43045-002-001
