Descripcion
General Specifications

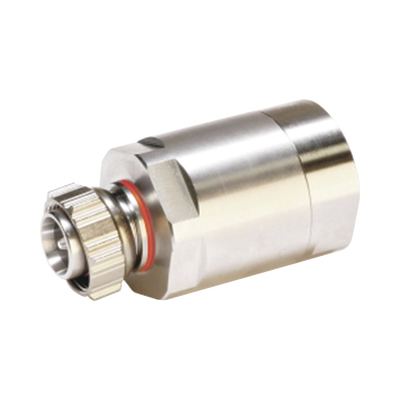

- Interface: 4.3-10 Male
- Body Style: Straight
- Mounting Angle: Straight
- Ordering Note: CommScope® standard product (Global)
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 5000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD Dynamic Test Method: Two +43 dBm carriers
- 3rd Order IMD, typical: -166 dBc @ 1800 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 1415.00 V
- dc Test Voltage: 4000 V
- Outer Contact Resistance, maximum: 1.50 mOhm
- Inner Contact Resistance, maximum: 0.40 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Average Power: 3.0 kW @ 900 MHz
- Peak Power, maximum: 40.00 kW
- Insertion Loss, typical: 0.05 dB
- Shielding Effectiveness: -130 dB
Ficha tecnica
Nivel de rendimientoCategoria 6 / Clase E
Tipo de cableU/UTP de 0.90 m (3 ft)
CableadoT568B, conectores RJ45
Calibre24 AWG, clasificacion CM
CertificacionesRoHS, UL 1863
NormaTIA/EIA-568-C.2
Documentos del producto
No hay documentos disponibles para este producto.
Preguntas
Responde el equipo NovusredEs compatible con camaras PoE?
Si, soporta PoE y PoE+ sin problema al ser Cat. 6 de cobre solido.
